D-701 Tactile Motion Amplifier
The D-701 Tactile Motion Amplifier is designed to perfectly complement Crowson Shadow-8 Actuators. The D-701 Amplifier is built to reference-grade specifications. The integrated DSP allows a custom-tailored experience with features such as infrasonic (ultra low frequency motion) control and digital delay for proper subwoofer time alignment. The 1000 watt power supply insures ample headroom and provides unmatched dynamic motion.

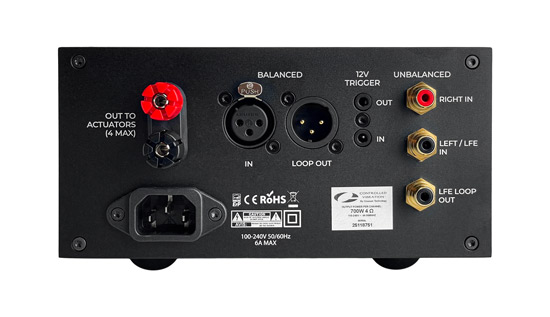

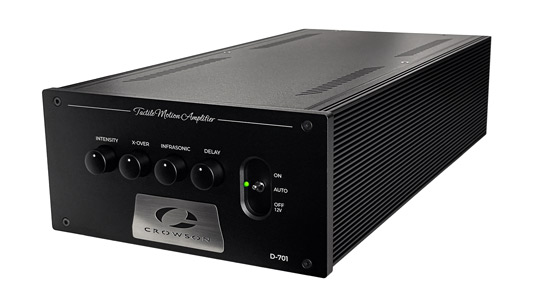

The D-701 amplifier front panel has a power on/auto/standby switch, intensity knob, crossover knob, infrasonic level knob and digital delay knob. The rear panel has 12V trigger input and loop out, balanced XLR input and loop out, unbalanced RCA input and loop out and universal (100Vac to 240Vac) power input.
With ample power for up to four (4) Shadow-8 Actuators (two T108SS kits), the D-701 Amplifier is a beautifully crafted, high-end component, built by hand in California.
Features:
- Drives up to four Shadow-8 (T108S) Actuators
- Balanced (XLR) input and output
- Unbalanced (RCA) input and loop output
- Filter, delay, infrasonic and gain control for limitless personalization
- 12V trigger or auto on
- Performs with authority down to 5z
- 1000W power supply provides endless headroom
- From extreme to subtle, delivers accurate and perfectly time aligned motion
Specifications:
- 700W RMS (4 ohm), high efficiency class D
- Variable Low Pass Filter: 40-150Hz
- Frequency response: 5 to 150Hz
- Input sensitivity: 200mV for full output
- Input Impedance: 10K ohm Unbalanced, 20K ohm Balanced
- Weight: 6.5lbs. (3 Kg)
- Size : 3.5″ (3.9″ including feet) x 7.3″ x 14.4″ (15.8″ including speaker connections)
- Certification: CE certified, ROHS, ERP
